ST27

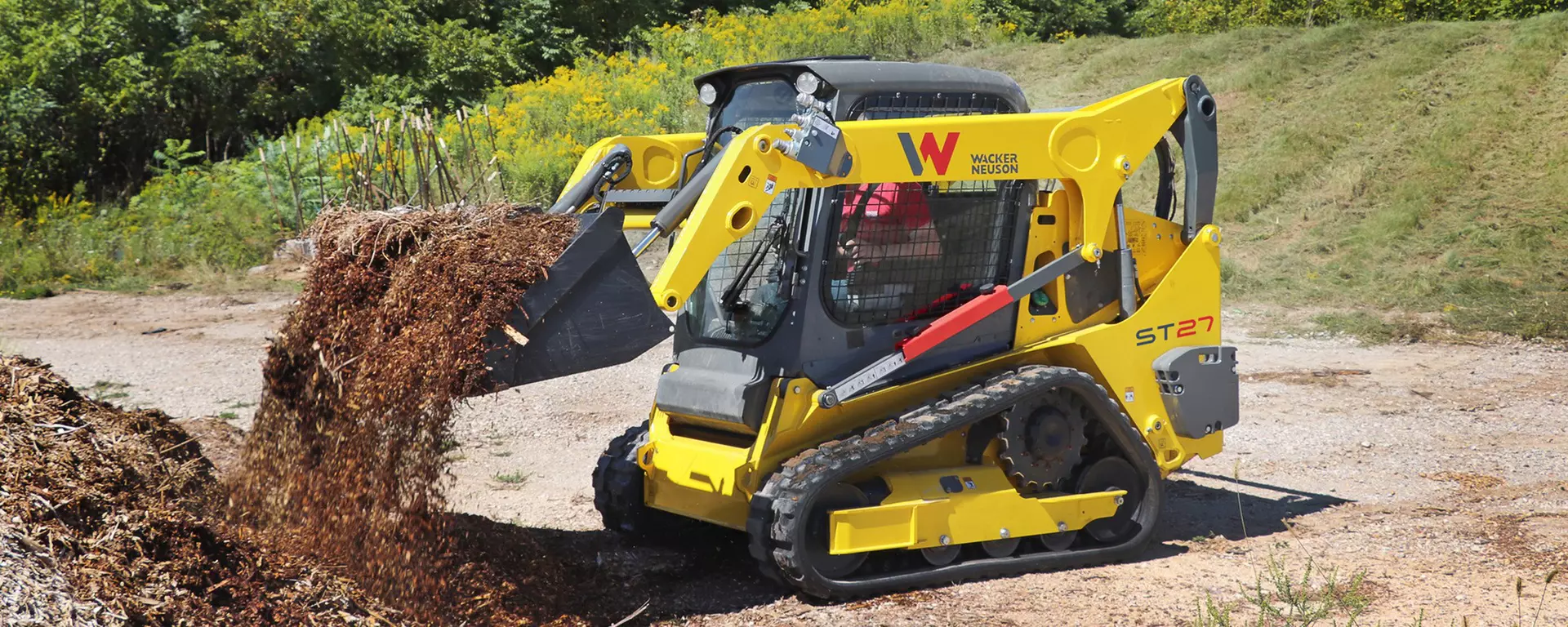

ST27 Compact Track Loader

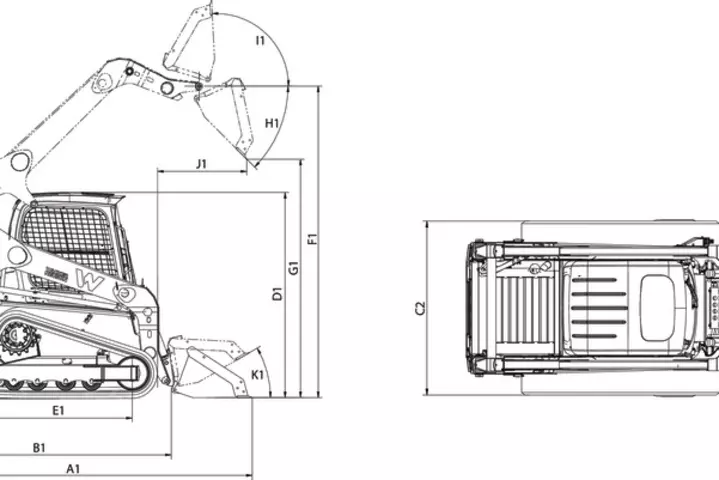

A1 Overall length with bucket 3,364 mm
B1 Overall length without bucket 2,605 mm
C1 Overall width with bucket 1,612.9 mm
C2 Overall width without bucket 1,524 mm
D1 Overall height 2,028 mm
E1 Length of track on ground 1,351 mm
F1 Hinge pin height 3,047 mm
G1 Dump height max. 2,395 mm
H1 Dump angle 37 °
I1 Bucket rollback at max. stroke height 95.5 °
J1 Dump reach 994.9 mm
K1 Bucket rollback at ground level 30 °
M1 Angle of departure 29.9 °
