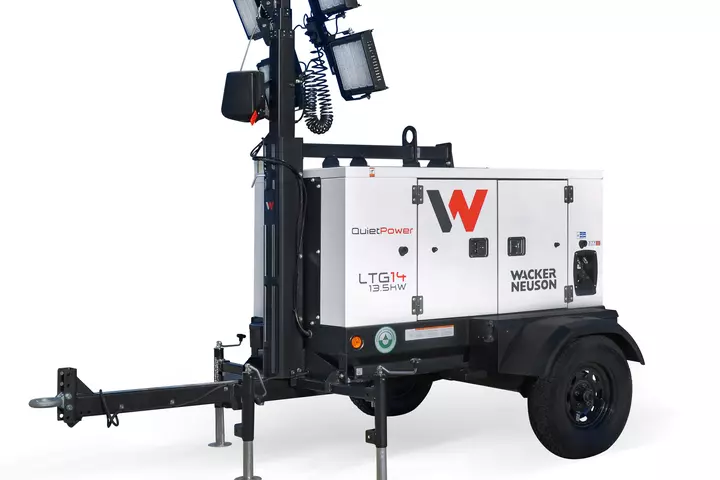

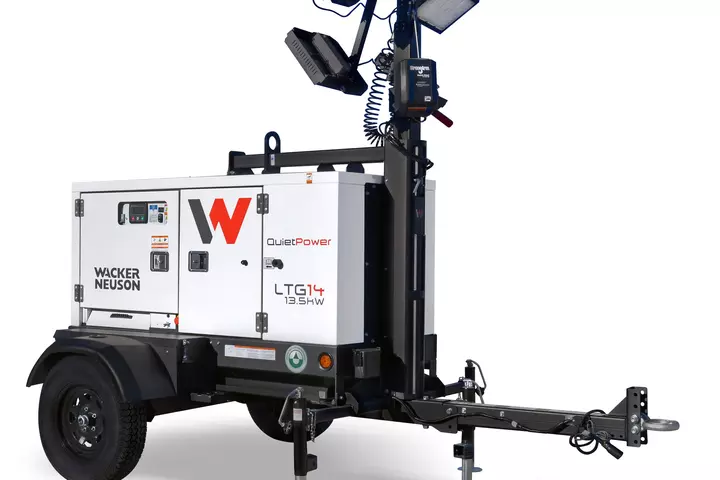

LTG Light Tower Generator: Providing light and power in the harshest of conditions

The LTG is designed to provide reliable lighting and auxiliary power for rugged applications in remote or harsh environments. Efficient LED's provide increased light coverage area and brightness and are designed to last the lifetime of the machine. The fuel efficient engine and large fuel tank allow for long run times reducing the need to refuel. Trailering the light tower to a job site is made easy by the versatile trailer which has a larger axle to provide stability on rough roads as well as a single point lifting eye for easy maneuverability.

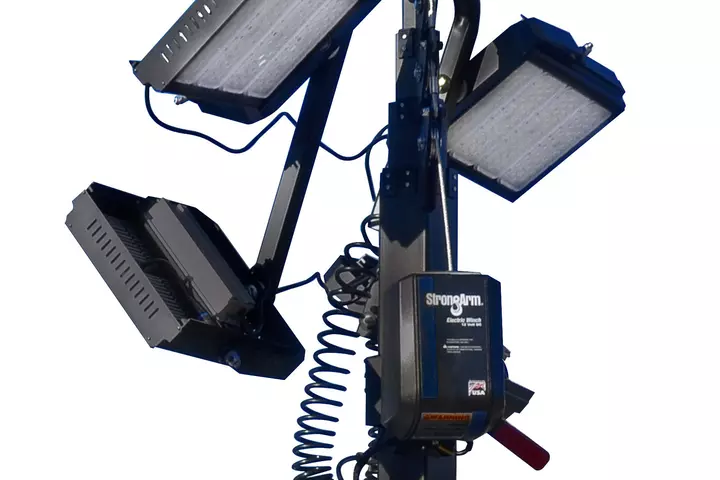

LED Lights

Rated to last the life of the machine, the durable LED lights eliminate frequent bulb replacement expense, reducing the total cost of ownership
Four 320 Watt LED lights provide a total of 192,000 Lumens instantaneously and increase uptime by eliminating warm-up and cool-down periods
Efficient LED lights extend the machine's run time and reducing overall operating costs

Power Mast

Electric winch raises and lowers the mast with the push of button.
Mast can be rotated manually 360°, raised or lowered.

Transportation Versatility

Foldable tongue minimizes the machine footprint for efficient shipping and storage
Wide axle on trailer provides stability on rough roads
Single point lifting eye for easy maneuverability

Programmable Controller

Easy to use controller
Allows for customizable start up and shut downs as well as monitors fuel usage and alarms when fuel is low
Heated display for cold weather conditions

Serviceability

Removable doors make maintenance quick and easy.
Control panel door swings open for easy access to AVR and wiring.
2 year / unlimited hour machine warranty | 4 year / 4,000 hour Kohler engine warranty.

More Features

Powerful Alternator

Class H insulation and separate excitation winding can handle heavier loads and hotter temperature
Fine tune voltage adjustment knob allows for fine tuning of voltage output

Operator Safety

Lug door safety switch cuts voltage to the electrical lugs when the lug door is opened in order to prevent operator injury.
Emergency stop button is highly visible and easily accessible to keep the operator, the environment, and others safe in the event of an emergency.
Battery disconnect allows for battery voltage to be fully disconnected from the rest of the machine to eliminate parasitic draw and residual voltage.

Fuel Tank and Containment

110% fluid containment protects the environment in the event of engine fluid or fuel tank leaks.
light weight, polymer fuel tank is rust proof and easier to tow and transport.
CSA certified for Canadian applications.
