EZ36

EZ36 Excavator
Find a Dealer

Tracked Zero Tail Excavator EZ36: Compact design and high performance

Get in and start working – with the EZ36, performance meets maximum efficiency. This zero tail excavator is ideal if compact dimensions are needed. Minimal rear overhang makes working along walls and other obstacles an easy task. The machine features intuitive operation using a joystick, display and jog dial, as well as a comfortable working environment. This leaves the operator in full control of the application. Configurable to meet a customer’s requirements, the EZ36 offers dealer-installed options, including a hydraulic thumb and rotating beacon.

EZ36 form above

Comfortable, fully glazed cab

  • The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
  • It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.
Tracked Zero Tail Excavator EZ36

Optimized drive concept

  • The well thought-out drive concept with optimized engine-pump management allows quick and precise control of the excavator. This makes up to 15 percent faster work cycles possible. The available engine versions are low in consumption and require no exhaust after-treatment.
Tracked Zero Tail Excavator EZ36

VDS Vertical Digging System

  • The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
  • Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.
  • The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.
EZ36 form above

Zero Tail

  • When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem.
  • Optimal working in limited working conditions, high maneuverability and time savings are guaranteed.
ET42 lashing eyes

8 large tie-downs

  • Six large tie-downs on the vehicle chassis and two on the dozer blade make loading and transport easy and safe.
  • The eyelets are perfectly placed for secure attachment of the machine and they are also suitable for large hooks.

More Features

Tracked Zero Tail Excavator EZ36

Tiltable and detachable cabin

  • The large tiltable and detachable cabin, as well as the removable chassis covers offer excellent maintenance access. The opening angle of approx. 60° makes various inspection and repair work easier.
Tracked Zero Tail Excavator EZ36

Air-conditioning system

  • The air conditioning system ensures a pleasant and constant temperature at the workplace. This can be individually adjusted manually with the fan.
Tracked Zero Tail Excavator EZ36

Hydraulically pilot-controlled travel pedals

  • The hydraulically pilot-controlled travel pedals provide comfortable and precise control without mechanical wear. Driving with foot control leaves the hands free for other functions. This saves time and increases operating comfort.
Tracked Zero Tail Excavator EZ36

USB port

  • Combined with a radio, the option of convenient cellphone charging is available.
Tracked Zero Tail Excavator EZ36

Dirt-repellent chassis

  • Less dirt collects in the sloping chassis box, and its special design also makes it easier to clean.
Tracked Zero Tail Excavator EZ36

Guided track rollers outside

  • In particular for lifting heavy loads, the externally located guide track rollers as well as an optimized weight distribution give the excavators a higher lateral stability.
Tracked Zero Tail Excavator EZ36

Hydraulic swivelling dozer blade

  • The swivel blade can be swiveled straight or variably by up to 25 degrees to the left or right. This way, the machine does not have to be reset in one direction as often during longer-lasting backfilling tasks. In the floating position, the dozer blade automatically follows the contour of the ground, so that the driver doesn’t have to make adjustments.
  • Infinitely variable swivelling with floating position for more flexibility and efficiency.
Tracked Zero Tail Excavator EZ36

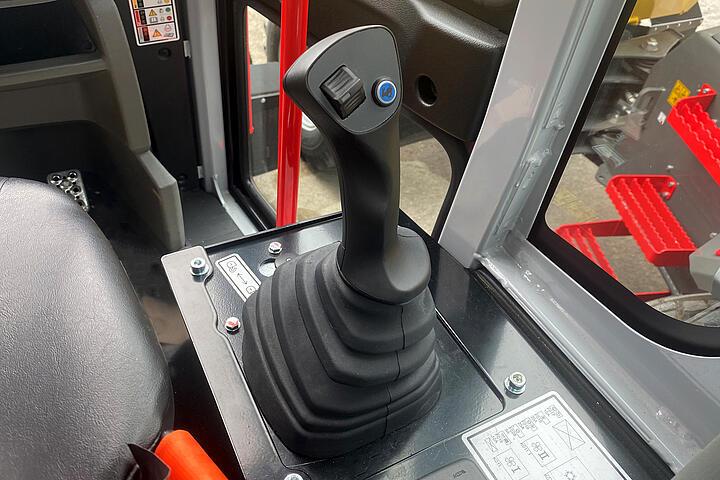

Joystick operation

  • The modern joystick combines many functions with a single handle: Trough actuation, speed change, change of direction. All important functions in one hand so that the second hand always remains on the steering wheel or free!
Tracked Zero Tail Excavator EZ36

Jog dial

  • The jog dial system, familiar from the automotive area, including a clear display, allows intuitive selection of the right operating settings via a press-push button as well as various settings via a keypad. ECO mode is the standard mode for efficient and fuel-saving work; HI mode stands for maximum pump performance and fast, powerful work and LOW mode for extremely precise, sensitive work.
Tracked Zero Tail Excavator EZ36

Hydraulic thumb

  • The optional hydraulic thumb offers, beside a conventional bucket application, a grip function, which expands the spectrum of applications.
  • With this additional grip function, material can be cleared away quite easily.
Tracked Zero Tail Excavator EZ36

Flexible cylinder rod protection

  • Protective cylinder guards made of plastic keep the cylinder rods of lifting arm, bucket and dipper stick cylinders safe from damage, increasing service life and can save significant costs. The cylinder guard material is flexible, so no permanent damage occurs upon contact with foreign objects. Work interruption due to replacement is eliminated.
