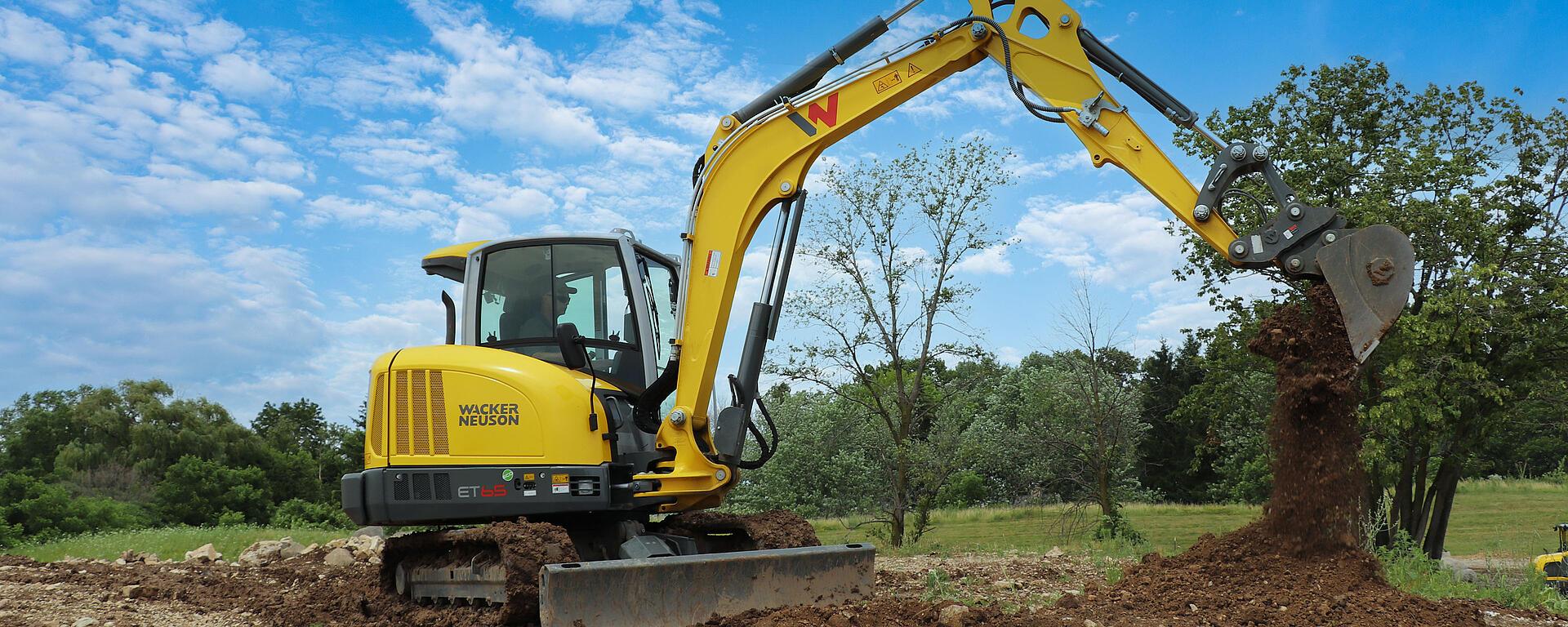

ET65 Tracked Excavator
Find a Dealer
Dimensions ET65
Click to enlarge
Monobloc boom Articulated boom
A1 Height with cab 97.6 in 97.6 in
A2 Total height with rotating beacon 104.5 in 104.5 in
A3 Height of dozer blade 16.67 in 16.67 in
B1 Width of upper carriage 74.94 in 74.94 in
B2 Width of cab 39.4 in 39.4 in
B3 Width travel gear 76.83 in 76.83 in
B5 Width of dozer blade 76.83 in 76.83 in
C Transport length short shovel arm 241.8 in 238.96 in
C Transport length long shovel arm 241.44 in 244.04 in
D Digging depth max., short shovel arm 150.74 in 153.38 in
D Digging depth max., long shovel arm 162.56 in 165.2 in
E Piercing depth max., short shovel arm 93.89 in 108.9 in
E Piercing depth max., long shovel arm 104.65 in 119.62 in
F Piercing height max., short shovel arm 227.46 in 257.56 in
F Piercing height max., long shovel arm 234.63 in 266.74 in
G Dumping height max., short shovel arm 154.13 in 181.9 in
G Dumping height max., long shovel arm 161.3 in 192.98 in
H Digging radius max., short shovel arm 245.07 in 259.65 in
H Digging radius max., long shovel arm 256.26 in 270.95 in
I Max. reach at ground level (short shovel arm) 240.22 in 255.11 in
I Max. reach at ground level (long shovel arm) 251.65 in 266.82 in
J Tail swing radius 53.7 in 53.7 in
J Tail swing radius with tail weight 58.35 in 58.35 in
K1 Boom offset max. (to center of bucket right side) 30.18 in 30.18 in
K2 Boom offset max. (to center of bucket left side) 19.38 in 19.38 in
L Stacking height max. (dozer blade above surface) 15.88 in 15.88 in
M Digging depth max. (dozer blade below surface) 16.82 in 16.82 in
N Length travel drive 99.13 in 99.13 in
O1 Max. swivel angle (arm system to the left) 67 ° 67 °
O2 Max. swivel angle (arm system to the right) 63 ° 63 °
P1 Track width 15.76 in 15.76 in
Q1 Boom swing radius center 96.65 in 124.46 in
Q2 Boom swing radius right 93.46 in 122.02 in
Q3 Boom swing radius left 74.94 in 107.64 in
